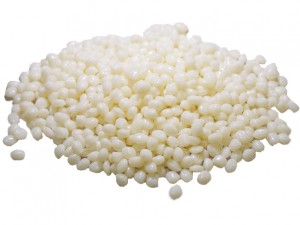

INJECTION TPE

In the injection moulding process the melted TPE compound are injected into a mould.


Product Detail

Product Series
Hongshuo Injection TPE P18/19 Series (Shore 0A-Shore 65D)
Hongshuo Injection TPE P28/29 Series (Shore 0A-Shore 65D)
Hongshuo Injection TPE EP52/53 Series (Shore 0A-Shore 65D)

Features
—High elasticity
—Easy to process and color
—Wide range hardness(Shore 0A-Shore 65D)
—Excellent elongation and elasticity
—Very good resilience
—Non-toxic, environmentally friendly
—Wide range of temperature (-50℃ to 135℃)
—Soft touch
—high production efficiency

Applications
Pen grips,toothbrush handle, tools, toothbrush, cap liner,foot pad, protective cover etc.

Safety/Quality Approvals
Comply with RoHS, REACH SVHC, NP,FDA,Prop 65, ISO9001



ITEM (shoreA)    Hardness 180℃/5kg(g/10min)Melting Flow Rate (g/cm3)       Specific Gravity (kg/cm2)  Tensile strength (%)  Elogation at break (kg/cm)     Tear Strengh
P1840 40 135.6 1.15 28.5 682 15.1
P1860 60 165.3 1.15 45.9 623 25.3
P1875 75 137.4 1.14 58.7 556 30
P1945 45 128 1.22 30.6 635 16.7
P1960 60 199 1.2 45.2 586 24.1
P1970 70 143 1.2 56.9 528 31.6
ITEM Hardness(shoreA) Melting Flow Rate 180℃/5kg(g/10min) Specific Gravity(g/cm3) Tensile strength(kg/cm2) Elogation at break(%) Tear Strengh(kg/cm)
P2845 45 129 1.1 28.8 670.6 16.6
P2875 75 87 1.1 70.1 587.6 34
P2890 90 67.3 1.1 86.7 440.5 43.6
P2945 45 99.8 1.05 30.7 677.6 16.3
P2965 65 80.9 1.05 55.4 579.4 32.7
P2985 80 102.1 1.05 82.5 475.8 46.6
ITEM Hardness(shoreA) Melting Flow Rate 180℃/5kg(g/10min) Specific Gravity(g/cm3) Tensile strength(kg/cm2) Elogation at break(%) Tear Strengh(kg/cm)
P3065 65 80.3 1 60.5 603 25.2
P3075 75 35.6 1.02 85.5 589 40
P3090 90 46.5 1.01 112.9 489 53.6
P3245 45 96.1 0.97 39.5 688 18.5
P3260 60 89.1 0.98 55.2 590 24.3
P3275 75 112 0.98 85.6 556 37.6
ITEM Hardness(shoreA) Melting Flow Rate 180℃/5kg(g/10min) Specific Gravity(g/cm3) Tensile strength(kg/cm2) Elogation at break(%) Tear Strengh(kg/cm)
EP5250 50 68.5 0.96 46.4 664 19.7
EP5270 70 35.2 0.95 75.2 598 38.1
EP5295 55D 46.5 0.96 153.2 583 109.7
EP5360 60 29.4 0.94 73.1 650 26.4
EP5370 70 50.1 0.95 87.5 630 42.1
EP5390 90 52 0.95 125.5 615 56.5
